The Art of Raw Conversion #030



LightZone™ 2.0

Mac & PC

review diary by Uwe Steinmueller







9/26/2006 LightZone 2.0 Beta

Disclosure: As a photographic advisor to Light Crafts Inc. we are partly involved in the development of LightZone 2.0 (mainly requesting features and testing the software). Still what we write is our personal opinion and not the one by Light Crafts.

When we discovered LightZone (read our review especially if you are new to LightZone) in December 2005 we found this to be an application with a lot of potential. Since then LightZone improved its tool set quite impressively with the latest version 1.6.

So far LightZone's workflow features (mainly the browser) had been very basic but this is changing now with version 2.0.

Lets revisit our initial list of what we found missing in LightZone:

  • Selections via color range (still open)
  • Printing with black point compensation (part of V1.6))
  • Set the color of the background (open but also minor issue)
  • Copy/paste of settings (stacks) (part of 2.0)
  • WB with an select neutral option (part of 2.0)
  • Improved noise removal (part of 1.6)
  • Presets per tool (open but can be done with tools templates in 2.0)
  • Easier integration with 3rd party RAW converters (no real need because 1.5 LZ has an improved raw converter itself)

This clearly shows that LightCrafts is listening to the demands of its users.

The rest of this introduction will highlight the new and improved features in LightZone 2.0. Best you download a free demo version and experience the new version 2.0 yourself.

Note: A great way to learn LightZone is to look at the entries in our LigthZone Contests. Here other readers share what they do to improve images with LightZone. Because you get all the steps of the processing you can learn from their experience.

Browser

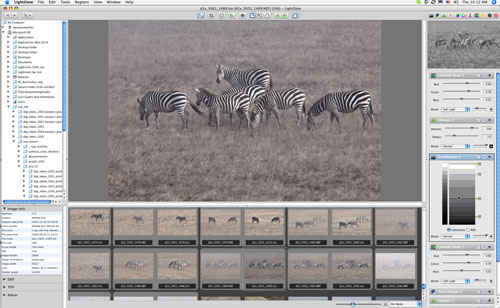

Browser in Standard Layout

The browser in 2.0 uses the proven layout of current raw converters (but remember that LightZone is not just a RAW converter because it allows powerful selective editing).

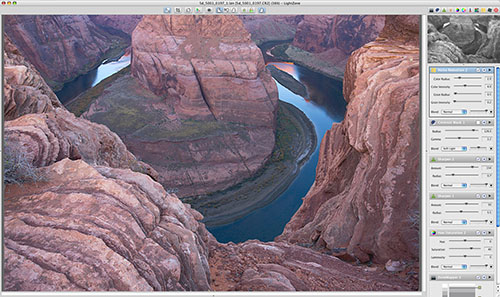

Editor Layout

Via simple keyboard shortcuts or the menu the Browser can be switched into the Editor Layout which allows a much larger image window.


Image Grouping

A very nice feature in the new LightZone 2.0 Browser is the grouping of files. RAW files and the LZN files that use these RAW files get grouped so that you can see that they belong together.

New and Improved Tools

Sharpening (improved)


Sharpening

Sharpening now allow the use of a Threshold to avoid sharpening of noise.

Color Balance (new)


Color Balance

This tool mainly allows to treat color casts in different tone ranges separately. You can e.g. correct a cast in the shadows different than in the highlights. This is very important because often the shadows and the highlights are illuminated by different light sources.

White Balance (improved)


White Balance

Finally LightZone got a color picker to adjust the global white balance via neutral gray objects.

Note: Because you can restrict all tools to Regions you may of course even change the white balance of selected areas.

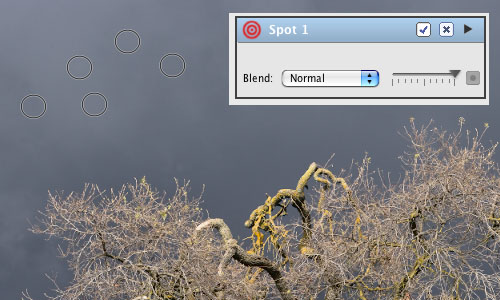

Spot Tool (new)


Spot tool

The Spot tool is essentially based on the LightZone Clone tool. But you can apply corrections much faster by just clicking on spots. Later you can fine tune the clone source and size. Combined with the new tools templates you can even copy a spot layer from one image to other images (dust spots often show in exactly the same locations).

Tool Templates

This is a very powerful feature in version 2.0. The are two ways to copy tool stacks from one image to many other images.

1. Copy/Past of tools


Copy/Paste Tools

You just copy the tool stack from one image to as many images as you like. Most settings get copied including all regions. This allows unheard batch correction to other images. More details will discussed in our soon released LightZone chapter as part of our RAW book.

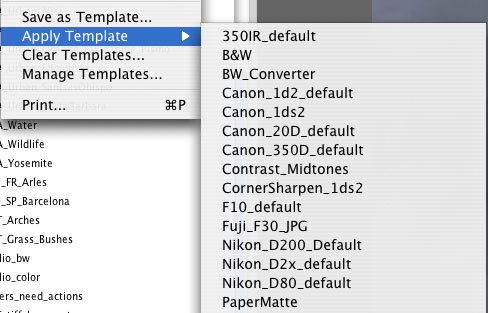

2. Save and apply named templates


Save and Apply Templates

This way you can create a whole library of tool sets that can be applied to other images (somehow like Photoshop actions but because of even copying regions it can be even somehow more powerful).

Tool Templates are real time savers.

What is still missing?

  • Selections via color range (expect this in one of the next versions after 2.0)
  • Lens corrections and perspective corrections (also on the development map)

Note: We worked for the last 30 to 40 days with early versions of LightZone 2.0 and revisited likely over 1000 of our images from 2003-2006. In nearly all cases we were able to get as good or better results as ever before and this with less effort (more intuitive). Without the new "Apply Template" feature it would not have been possible.


3/19/2007 LightZone 2.3 released

The LightZone 2.3 improves focuses on the integration with Lightroom, Aperture and iPhoto (we use LightZone with Lightroom all the time and can tell it works very well).

Special LightZone Basic (LightZone without the browser, you use the browsers of your organizers) offer for Lightroom, Aperture and iPhoto users:

We quote: "..Beginning 3/19/2007, Light Crafts will offer LightZone Basic, its best-of-breed photo-editing package, for the discounted rate of $99.95 (regular price: $149.95) to Lightroom and Aperture users, enabling them to take advantage of patented visual editing technology seamlessly within these proprietary photo databases.". Also DOP readers get a special discount (see below).

New B&W Tool


LightZone BW Tool

For BW we use nearly always LightZone. The entirely new B&W filter even improves on the version before by featuring:

  • Keeps Luminosity constant (independent of filter used)
  • Can show the effects of color filters fast
  • The combination of BW Tool, Hue/Sat, ZoneMapper and ToneMapper is hard to beat for BW






Buy LightZone at a special DOP discount from LightCrafts:
