Outback Photo Handbook: Workflow Basics

Photoshop CS4


review by Uwe Steinmueller


Manage the Digital Workflow



9/23/2008 Photoshop CS4 announced

This is a short preview of the Photoshop CS4 new features. We concentrate on the changes we find most relevant for our work.

User Interface Changes

Applications Frame

In CS3 the images were most of the time free floating on the background. We never really liked it. The new tabbed Application Frame (default but optional) allows a cleaner organization of your open documents and hides the OS desktop:

Panel Docking

All tool panels can now be better grouped by docking different panels.

Flash Panels

CS4 allows developers to create new panels (Flash Panels) that look and behave like native CS4 panels. You find these panels here:

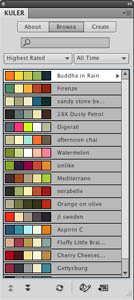

CS4 comes with two sample Flash Panels. Here is a screen shot of the Kuler extension panel:

Note: The DOP_Tools(shown in the menu) is our own experimental extension panel. Not sure it will ever really see the light of the day :-).

Bridge

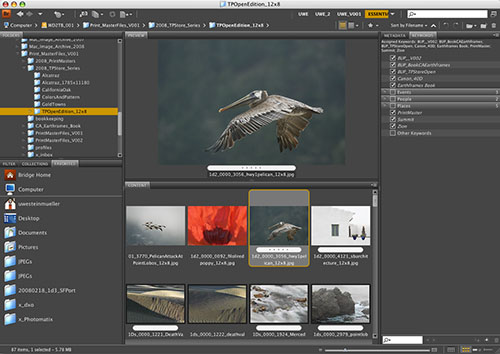

Bridge is very much improved under CS4. But most of the time we work from Lightroom 2.0 and use Bridge mainly as second browser:

Bridge CS4

Camera Raw 5.0

Camera Raw 5.0 now features all editing tools of Lightroom 2.0. We do nearly all our editing in Lightroom 2.0. Still Camera Raw 5.0 is an important interface for all RAW files in Photoshop CS4:


ACR 5.0

Non-modal Adjustments

Non-modal

Non modal editing with Adjustment Layers is a big improvement. What does "non-modal" mean? In CS3 you had to open the Adjustment Layer panel, edit and then close it. This is not a process that flows well. Now you select the Adjustment Layer and the control is automatically shown in the new Adjustments panel. Switch to a different Adjustment layer and that control is shown. Going back from non-modal to modal feels really bad as it slows your workflow down.


Layers and Adjustments panels (docked)


Adjustments Panel with Curves tool

Masks

Also the Layer Masks have very powerful new features (shown on the new Masks panel):


Mask Feather


Mask Density

You can change the feather and density of a mask. What is the benefit of this? These changes are non destructive and can be fine tuned later. In the past you had to redo the mask if you wanted to change the feathering.

TAT (Target Adjustments Tools) Icon

  • Curves
  • Hue/Saturation

New Tools

Vibrance

CS4 now also features a Vibrance tool like ACR and Lightroom. Vibrance is a more intelligent saturation tool and has proven to be very useful in Lightroom/ACR.

CAS Content-Aware Scaling

This is a fun and interesting tool. Instead of scaling an image evenly this tool tries to scale the image depending on the content. Best you try it yourself. We did just played with a few samples.

Improved Tools

Dodge/Burn

The old tools Dodge and Burn use now improved algorithms.

Color Range

Color Range has a new functionality: Localized Color Clusters. This allows to create way more precise color selections.

Clone and Healing Brush

The new Clone and Healing Brushes allow to show an overlay at the target location. This means you can much better align the source with the target location.

Align Layers

CS3 did a great job in aligning layers (e.g. for HDR) and CS4 has even improved on it.

Notes

The Notes tool is also improved to be more flexible.

Misc

GPU based tools

Some nice tools (e.g. Rotate Canvas) only work if your computer has a supported GPU. Unfortunately our main machine does not have one. You can easily find out whether your computer is supported in the Preferences->Performance panel:

3D

There are a lot of improvements for 3D. We don't use them in our photographic work.

Conclusion

Our highlights are:

  • Non modal Adjustments
  • Feathered masks
  • Color Range
  • Application Frame
